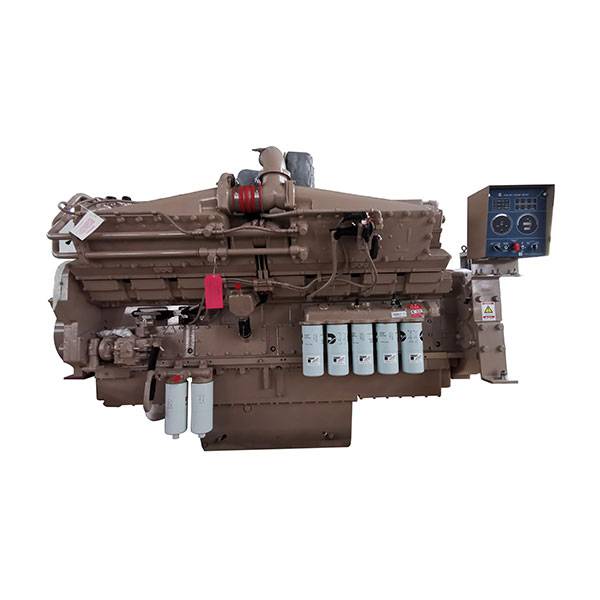

Cummins Marine Propulsion Engine
Abstract
CUMMINS products are widely praised by users at domestic and abroad for their advanced economics, dynamics, reliability, durability and environmental safety. CUMMINS offers a complete line of variable speed propulsion solutions designed specifically for the challenges of commercial, government and recreational marine applications. TONTEK POWER marine propulsion line includes the 6B series, 6C series, the mechanical K and N Series and the electronic Quantum Series. The 6B and 6C series are from DCEC; the N and K series are from CCEC, and the bigger powers are from CUMMINS,USA.
Main Features
● 6B and 6C series CUMMINS engines are popular in the fishing boats and yachts.
● Both the N Series and the K Series have proven reliable and durable in tough marine environments for over 25 years. Many of NTA855 and KTA19/38/50 propulsion ratings are now certified to meet more stringent IMO Tier II global emissions standards.
● All components of the propulsion engine are carefully designed to work perfectly with the system for optimal performance and maximum efficiency.
● The engine is durable, safe and stable, and easy for maintenance.
● Design and material selection are strictly in accordance with the marine operating environment.
● The equipped intelligent control system can automatically detect the operating status of the engine, and start quickly and reliably to ensure the safe and efficient operation of the engine.
Specifications
1. Cummins marine main propulsion engine.
2. Millions USD stock of spare part will give you best after service.
3. Original.
- Cummins marine main propulsion engine for Barge, catamarans, dredger, cargo boat , cruiser, fishing boat, lifeboat, passenger boat, Tanker, trawler, tugboat, yachts etc.
- CCS and IMO approved! Cummins model 4BT, 6BT, 6CT, NTA, KTA19,KTA38 etc.
- Millions USD stock of spare part will give you best after service
- Long period warranty for 12 Months
- Stable and reliable Supply
■ CCSBVABSRINAKR CLASS CERTIFICATE
■ IMO EMISSION CERTIFICATE
■ HEAT EXCHANGER COOLED AND KEEL COOLED AS OPTIONAL
■ ADVANCE /FADA MARINE GEARBOX AS OPTIONAL
Engine Model |
Prime power |
Rated Speed |
Dimension |
Weight |
|
HP |
KW |
||||
6BT5.9-M120 |
120 |
90 |
2200RPM |
1182x685x1128 |
443 |
6BTA5.9-M150 |
150 |
110 |
2200RPM |
1182x712x1128 |
443 |
6CTA8.3-M188 |
188 |
138 |
2200RPM |
1405x768x1179 |
637 |
6CTA8.3-M205 |
205 |
151 |
2200RPM |
1405x758x1179 |
637 |
6CTA8.3-M220 |
230 |
164 |
1800RPM |
1405x768x1179 |
637 |
6LTAA8.9-M315 |
315 |
230 |
2134RPM |
1405x768x1179 |
791 |
N855-M |
350 |
261 |
1800RPM |
1298x817x1367 |
1433 |
N855-M |
400 |
298 |
1800RPM |
1298x817x1367 |
1433 |
N855-M |
400 |
298 |
2100RPM |
1298x817x1367 |
1433 |
K19-M |
500 |
373 |
1800RPM |
1877x1003x1905 |
2073 |
K19-M |
550 |
410 |
2100RPM |
1877x1003x1905 |
2073 |
K19-M |
600 |
447 |
1800RPM |
1877x1003x1905 |
2073 |
K19-M |
640 |
477 |
1800RPM |
1877x1003x1905 |
2073 |
K38-M |
800 |
596 |
1800RPM |
2152x1462x2083 |
4218 |
K38-M |
900 |
671 |
1600RPM |
2152x1462x2083 |
4218 |
K38-M |
1000 |
746 |
1800RPM |
2152x1462x2083 |
4218 |
K38-M |
1100 |
821 |
1800RPM |
2152x1462x2083 |
4218 |
K38-M |
1200 |
895 |
1800RPM |
2152x1462x2083 |
4218 |
K38-M |
1350 |
1007 |
1900RPM |
2152x1462x2083 |
4218 |
K50-M |
1600 |
1193 |
1800RPM |
2694x1564x2260 |
5166 |
K50-M |
1800 |
1342 |
1900RPM |
2694x1564x2260 |
5166 |
KTA50-M2 |
1900 |
1398 |
1950RPM |
2694x1564x2260 |
5166 |
