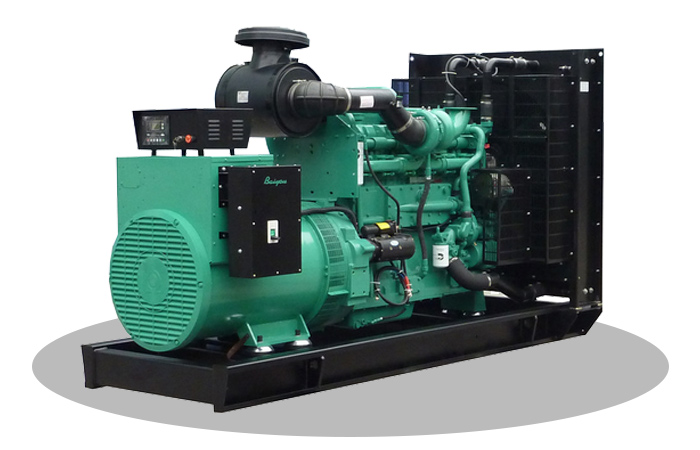

Chongqing Cummins Open Type 220KW Generator Set
Generator set |
Engine |
||
| Length(mm) | 2900 | Engine brand | Chongqing Cummins |
| Width(mm) | 1863 | Engine model | MTA11-G2A |
| Height(mm) | 1000 | conventional power(KW) | 220 |
| Total weight(kg) | 2750 | Reserve power(KW) | 242 |
| Generator set model | VGF-CKKJ-220 | Bore / stroke(mm) | 125*147 |
| Rated power(KW) | 220 | Number of cylinders(piece) | 6 |
| Actual power(KW) | 209 | Cylinder arrangement | In-line |
| Full load fuel consumption(L) | 35.2 | Air intake and exhaust mode | Pressure boost |
| Operational duration(Hour) | 72 | Speed control mode | Electronics |
| Overhaul period(Hour) | 3000 | Rated fuel consumption(g/KW.h) | 200 |
| Maintenance period(Hour) | 500 | ||
| Life expectancy(Year) | 20 | ||
| Noise(db) | 105 | ||
| Starting mode | LCD button auto start | ||
| Stop mode | LCD button auto stop | ||
| Battery matching | 100A*2 | ||
| Fuel tank(L) | 500 | ||
| Protection function | Multi function and all-round protection | ||
| Data display mode | LCD control panel digital display | ||
| Reference price（RMB） | 116900 | ||
